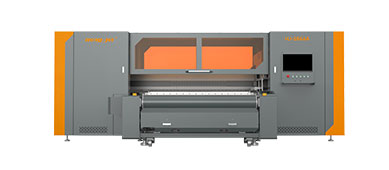

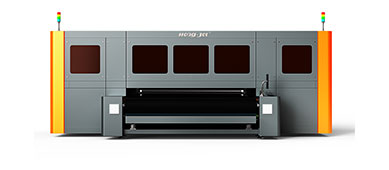

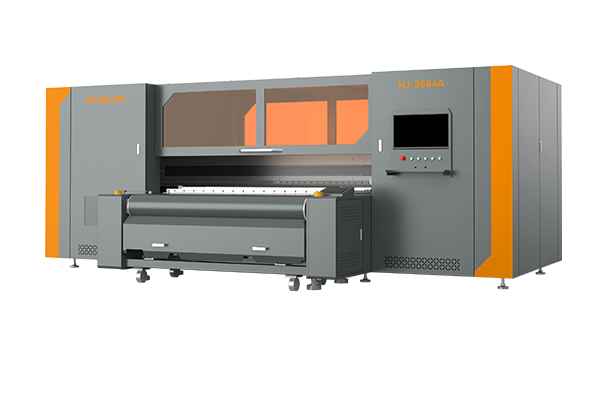

Digital Textile Printing-Dyeing Integrated Machine

Hong-Jet® Pixiu series digital textile printing-dyeing integrated machine: customizable configurations to meet production needs, featuring a coordinated fabric feeding mechamism to significantly boost efficiency. Compatible with various inks including textile pigment ink, disperse ink, reactive ink, and acid ink, it supports mainstream textile fabrics, delivering efficient and precise solutions for textile printing with a bright future.

▪ Brands: Hong-Jet® Pixiu series

▪ Compatible inks: textile pigment ink, disperse ink, reactive ink, acid ink.

▪ Printheads: Kyocera EX600

▪ Printheads No.: up to 128 heads

▪ Print Width: 1800mm ~ 3200mm

▪ Campatible Fabrics: varioius fabrics including cotton, linen, silk, nylon, woven and knitted fabrics.

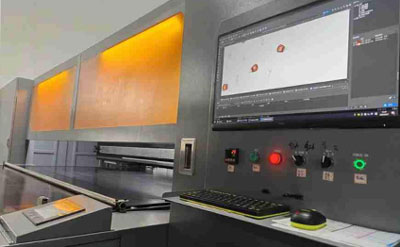

Humanized printing operation

• NeoStampa RIP software compatible with the textile industry.
• Supports custom multi-file queues for automated imagereplacement and continuous printing without interruption.
• Display print progress in real time and control productionrhythm accurately.
• View real-time feedback on device status and productionconditions.

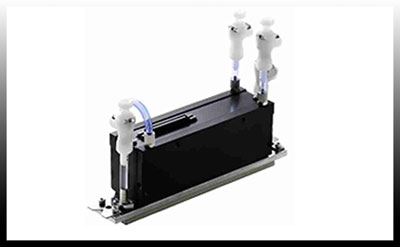

Printheads

• Equipped with high stability Kyocera nozzle, build a reliable hardwarefoundation.
• Long life industrial-grade design, wear and tear resistant.
• High-resolution output with accurate color and detail reproduction.
• Compatible with multiple ink types and production, with strongadaptability.

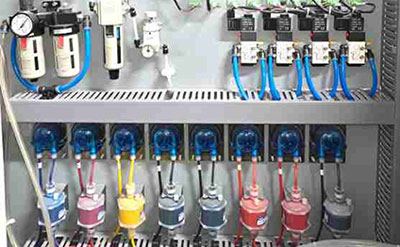

Ink Supply System

• Precise negative pressure control avoids ink interruption caused by negative pressure fluctuations.
• Dynamic temperature control stabilizes ink viscosity and prevents ink interruption.
• Full-loop ink circulation effectively prevents ink sedimentation.
• Supports two-state/eight-level grayscale adjustment for flexible droplet size adjustment.

Flexible Configuration

• The width covers 1.8m/2.6m/3.2m, supporting variousproduction widths and multiple fabric scenarios.
• Optional 24/32/48/64 nozzles to match productioncapacity requirements and balance cost and efficiency.
• Optional 6-color or 8-color configuration. 8-colorimproves color reproduction (suitable for high-end) and6-color meets standard production requirements.
• Occupying just 50m, it's perfect for limited spaces andbudget-friendly venues.

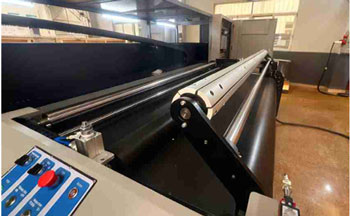

Upper Board System

• The detachable structure design is easy to transport and install.
• The amplitude-including correction device accommodates various textile fabrics.
• The pressure cloth roller continuously compensates the step, corrects the conveying error, and ensures the flat fabric adhesion to guarantee stable production.
• Compatible with wide-width fabrics, some models support double-width feeding to enhance production capacity.
• Supports large and small roll fabrics, with single and double station widing.

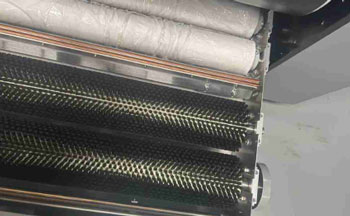

Belt Washing & Adhesive System

• The cleaning system integrates multiple components including a water-washing tray, scrubbing mechanism, scraper, air knife, water-suction unit,and drying unit to effectively remove contaminants from the conveyorbelt.
• Elevated water absorption mechanism reduces wear on guide belt andscraper.
• Precise control of spray water washing to reduce water consumption andsewage discharge.
• The high-grade magnetic rod is coated with glue to ensure the uniformityof glue and effectively reduce the material loss.

Hong-Jet ®️ Pixiu series textile digital printing-dyeing integrated machine is compatible with various materials including cotton, linen, silk, and nylon, suitable for woven and knitted fabrics. Key Application Fields: clothing & fashion, home textiles, outdoor field.
